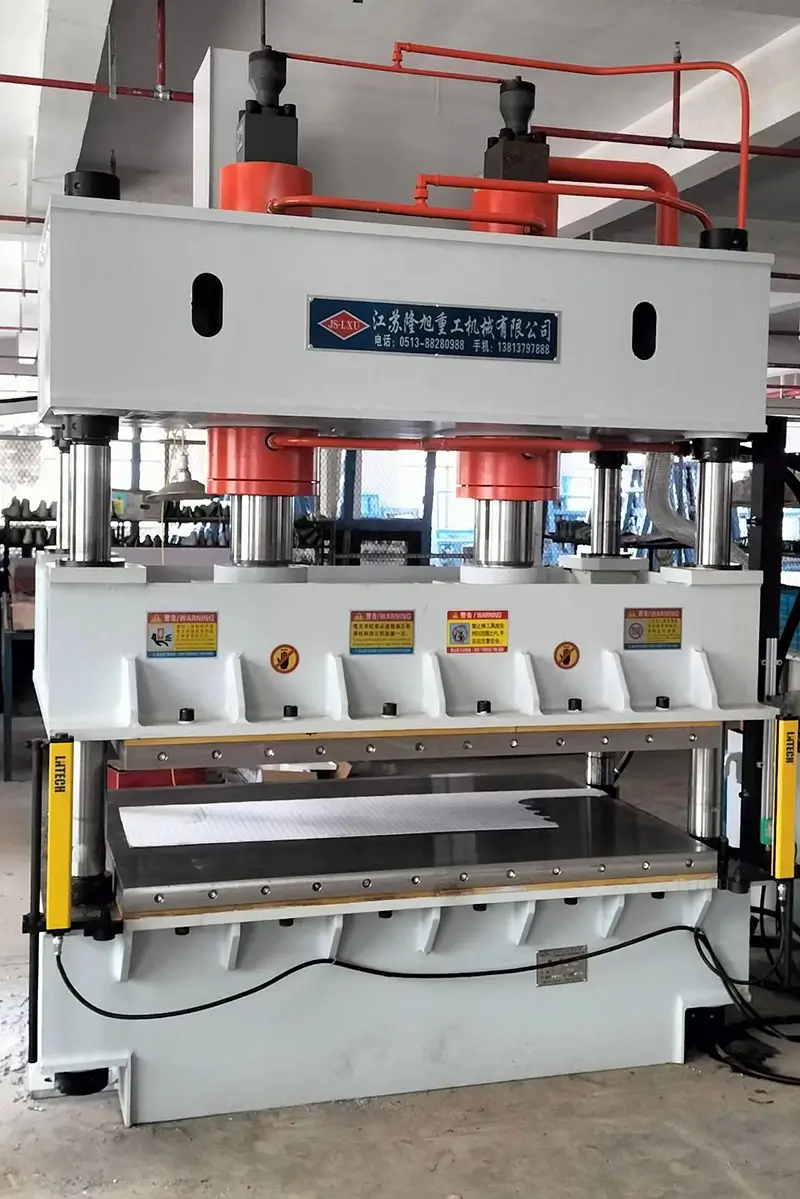

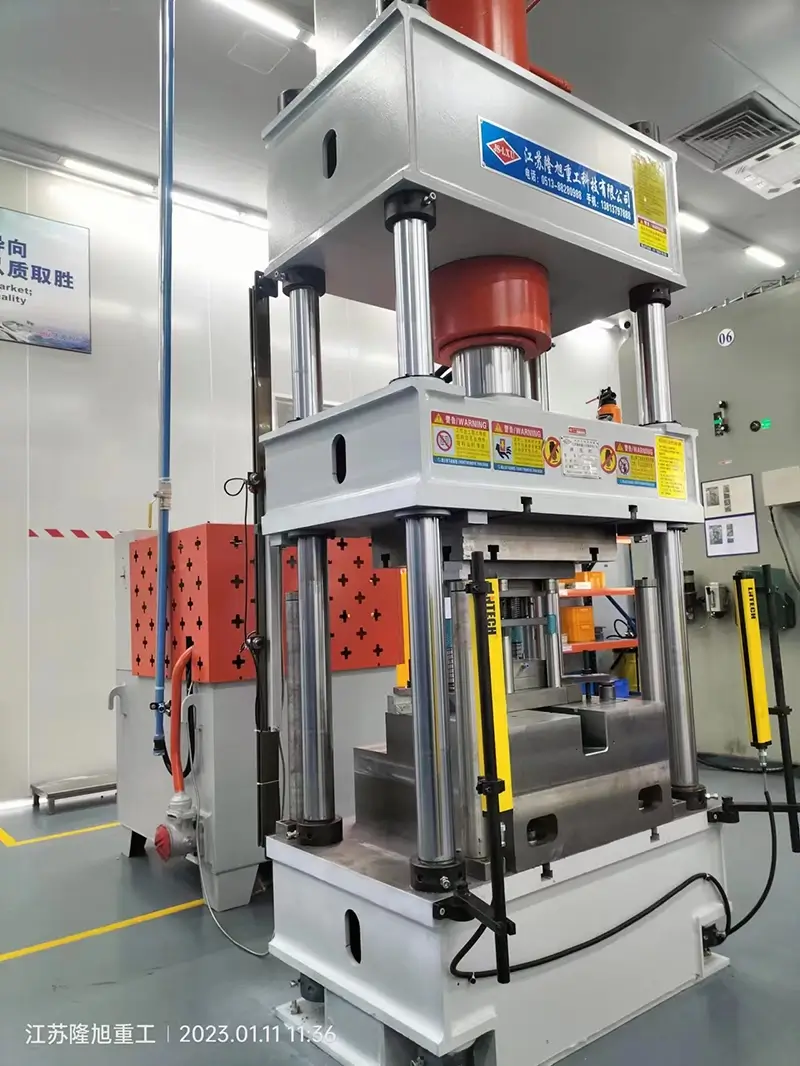

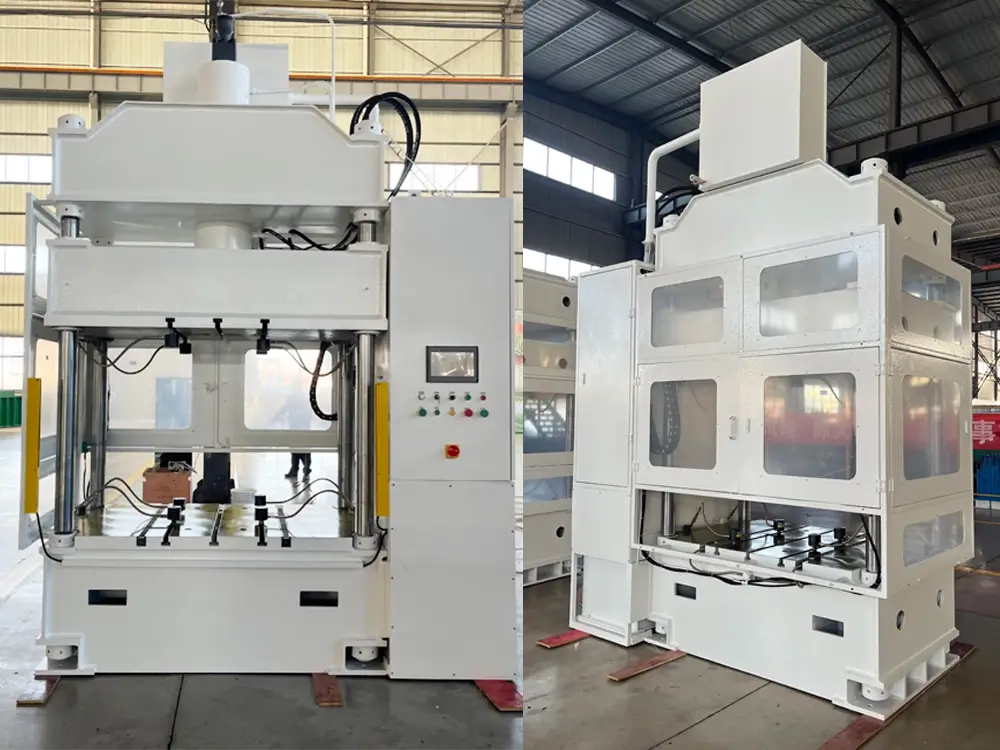

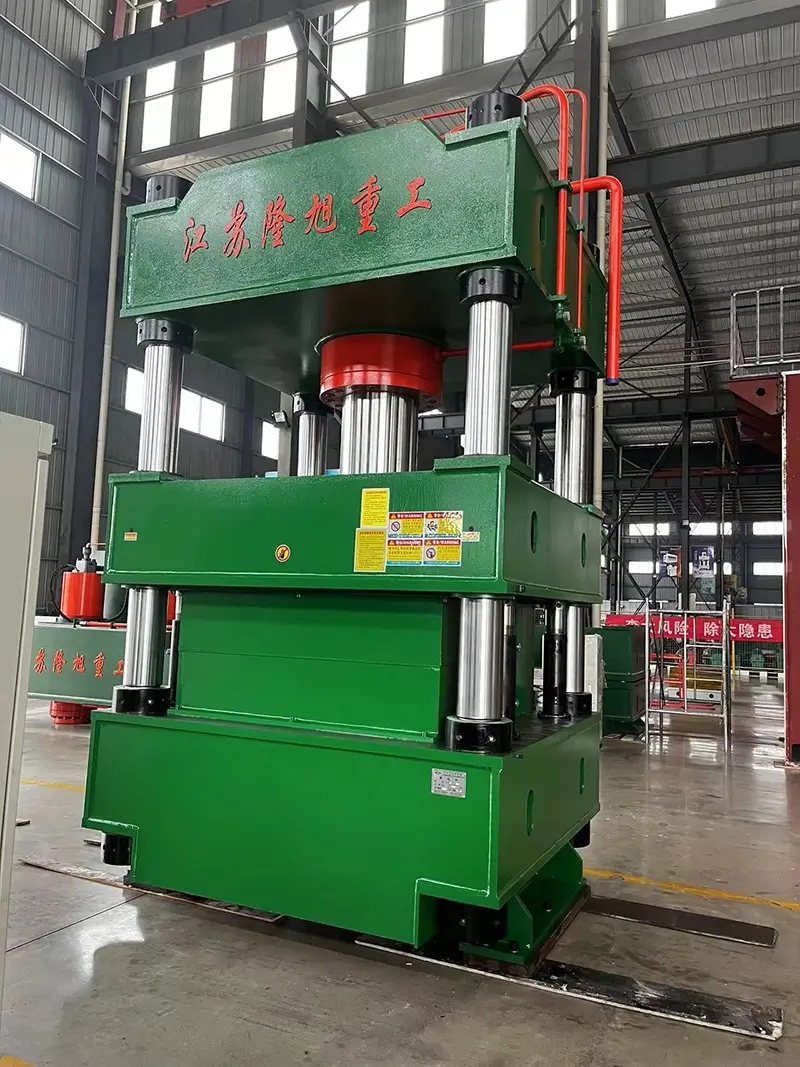

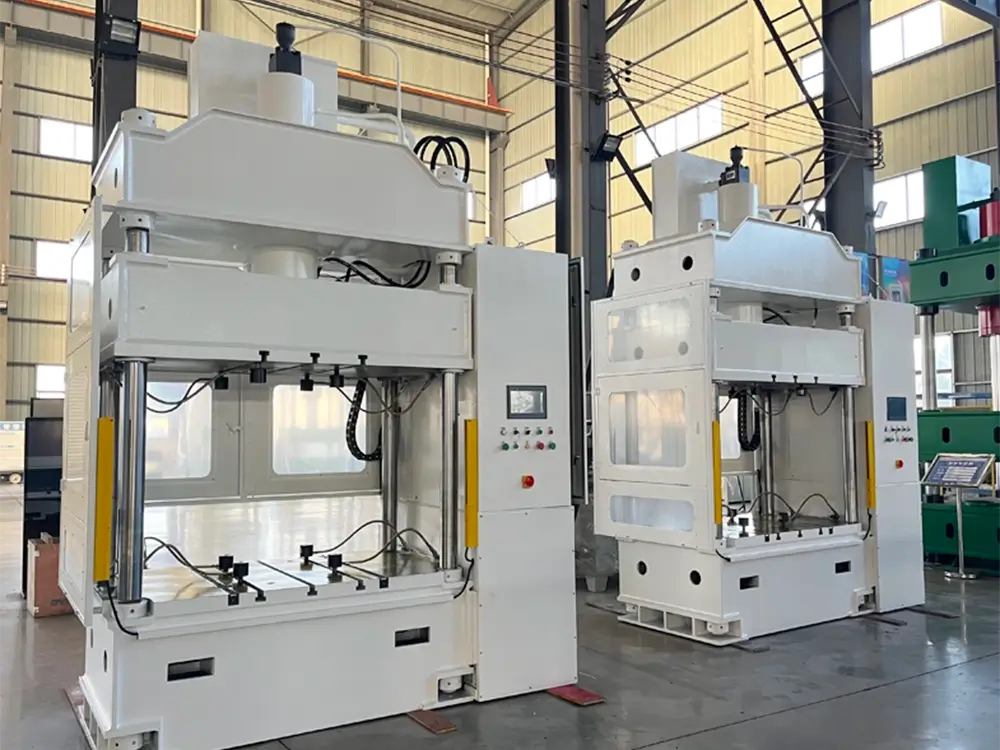

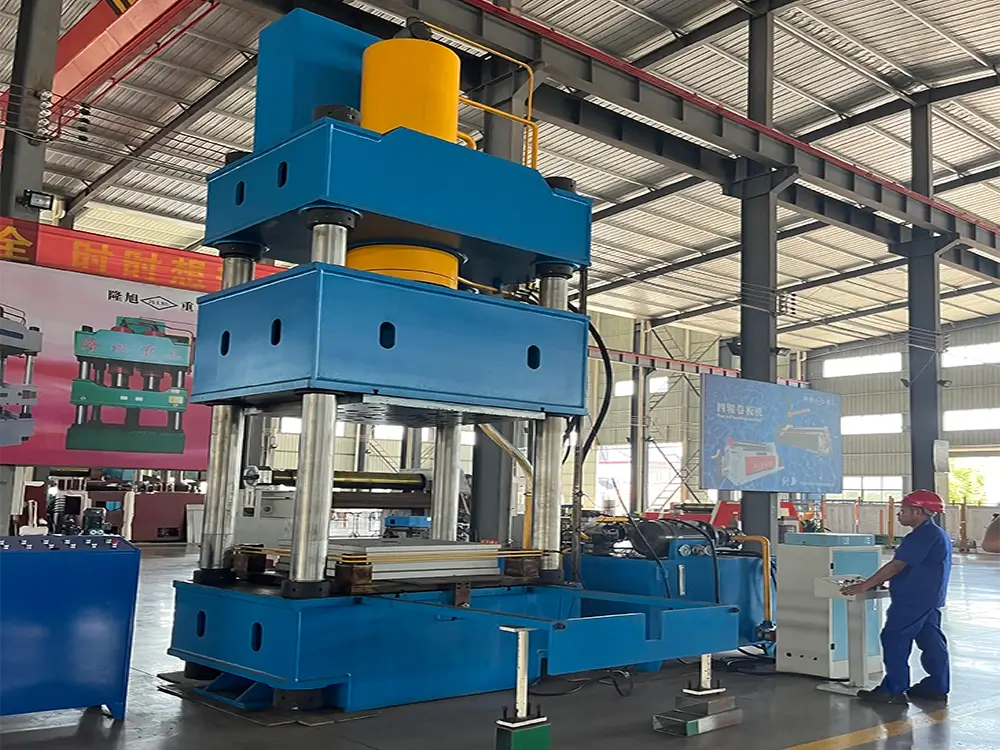

Y32 Series Four Column Universal Hydraulic Press

Y32 series four column universal hydraulic press, Sheet metal stretching, blanking, stamping and all stretch flange forming process, but also for correction, press-fit technology, widely used in the following industries: auto parts, body panels, brake, fuel tank, chassis, axle housing, bumper Kitchen appliances: sink, a pot, stainless steel appliances, and other containers.

As your business expands, we deliver scalable solutions that grow with you. Whether you’re adding new products, entering global markets, or upgrading your technical capabilities, our tailored services are designed to support your sustainable, future-ready growth.

From streamlining workflows to enhancing overall efficiency, we offer hands-on support to optimize your daily operations. By implementing proven best practices, we help reduce costs, boost productivity, and ensure smooth performance across every stage of your business.

We collaborate closely with you to develop strategies that align with your business goals. Our team provides in-depth consultation to help you understand market trends, uncover growth opportunities, and turn insights into clear, actionable plans for long-term success.

GET A QUOTE CASE STUDIES

Product Description

Other: tractors, motorcycles, aerospace, aviation, chemicals, instruments, machine tools.

y32-series-four-column-universal-hydraulic-press-double-cylinder-01

Product Features：

1. Working surrounding

Power-supply fluctuation:380 V (±15%), 50Hz, 3P or customized

Working temperature:0℃-40℃

Working humidity:55%-85%, without dew

Altitude:<1000 meters

Working Surrounding: Without harmful gas, metal fragments, without metal dust, without strong electromagnetic interference

2. Basic structure

The press can be divided into three main components:

the control/operating panel

the press

the hydraulic unit

The control panel

The control panel is separated from the main structure for the convenience of operation. The panel consists of a number of push buttons. The main operation pressing is controlled by two press buttons, providing a bi-manual operation to safeguard the operator from potential harm. The working pressure and stroke range of the slider can be adjusted according to the process requirements

y32-series-four-column-universal-hydraulic-press-03

The press

The main structure is steel welded, with heat treatment to remove the inner stress, with high rigidity and stability. The cylinder, piston, and column are made of #45 forging steel, quenching, and plating hard chrome to increase hardness.

The hydraulic unit

The hydraulic unit is the power of the machine, it’s placed on the right side of the press and connected to it by flexible high-pressure hoses and a multi-signal electrical connection.

3. Safety operating

--“PAUSE” button and the “EMERGENCY STOP” button are installed on the control station, press the “PAUSE” button, and the machine will stop at the present situation; press the “EMERGENCY STOP” button, and the whole machine will stop work.

--Bi-Manual buttons operation.

4. Main components brand

--Main electrical components: Siemens or Schneider

--Oil pump: Gaoya, China

--Main motor: Yingkai, China

--Valves: Taifeng,China

--Seals: Taiwan

y32-series-four-column-universal-hydraulic-press-02

5. Accessories

One book of operation Manual, Certificate of quality, Packing list.

One set of sealing and foundation boot

Technical Parameters

Y32 series four column universal hydraulic press
Parameter		Unit	Y32-40T	Y32-63T	Y32-100T	Y32-160T	Y32-200T	Y32-315T	Y32-400T	Y32-500T
Rated force		KN	400	630	1000	1600	2000	3150	4000	5000
Return force		KN	150	250	320	320	500	600	840	1000
Knock-out force		KN	120	190	190	240	400	630	630	1000
Max. Hydraulic Pressure		Mpa	25	25	25	25	25	25	25	25
Ram stroke		mm	350	450	600	700	700	800	800	900
Stroke of knock-out cylinder		mm	150	200	200	200	250	300	300	350
Max. Daylight		mm	700	800	900	1000	1100	1250	1300	1500
	Approaching	mm/s	50	80	100	120	120	120	100	120
Ram speed	Pressing	mm/s	15	15	15	12	15	12	12	15
	Returning	mm/s	80	80	100	120	120	120	100	120
Table size	L-R	mm	500	560	720	750	1000	1250	1200	1400
Table size	F-B	mm	460	500	580	640	900	1200	1200	1400
Working table height		mm	650	680	800	470	550	650	650	760
Total height		mm	2250	3100	3150	3400	3750	4300	4500	5000
Motor power		Kw	5.5	7.5	7.5	11	15	18.5	22	18.5*2
