Product Description

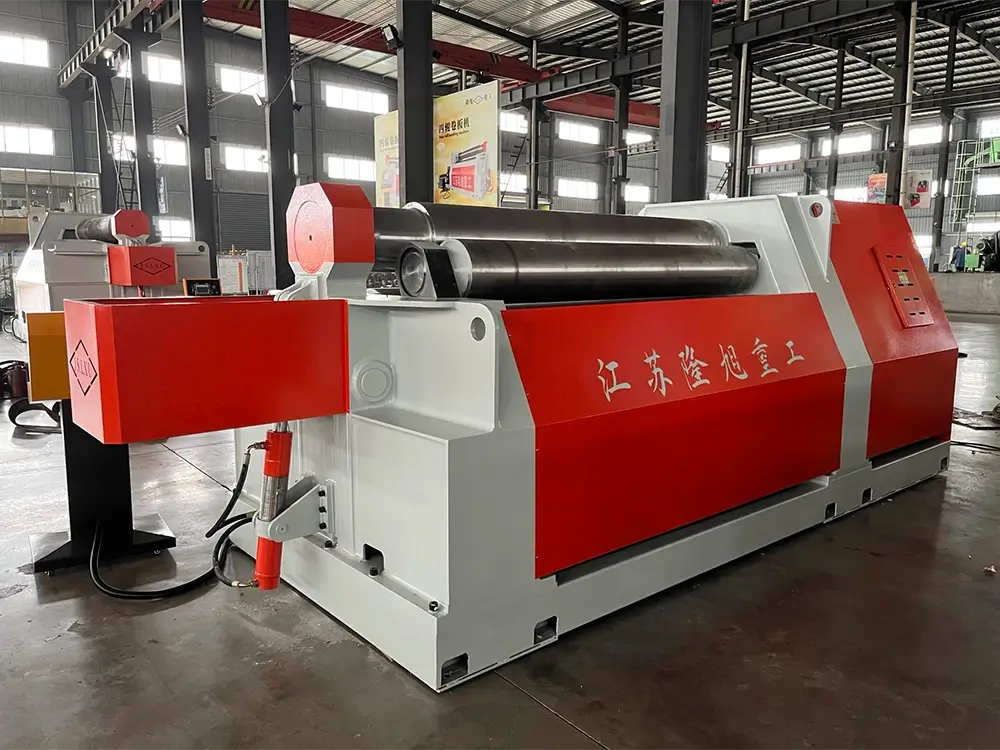

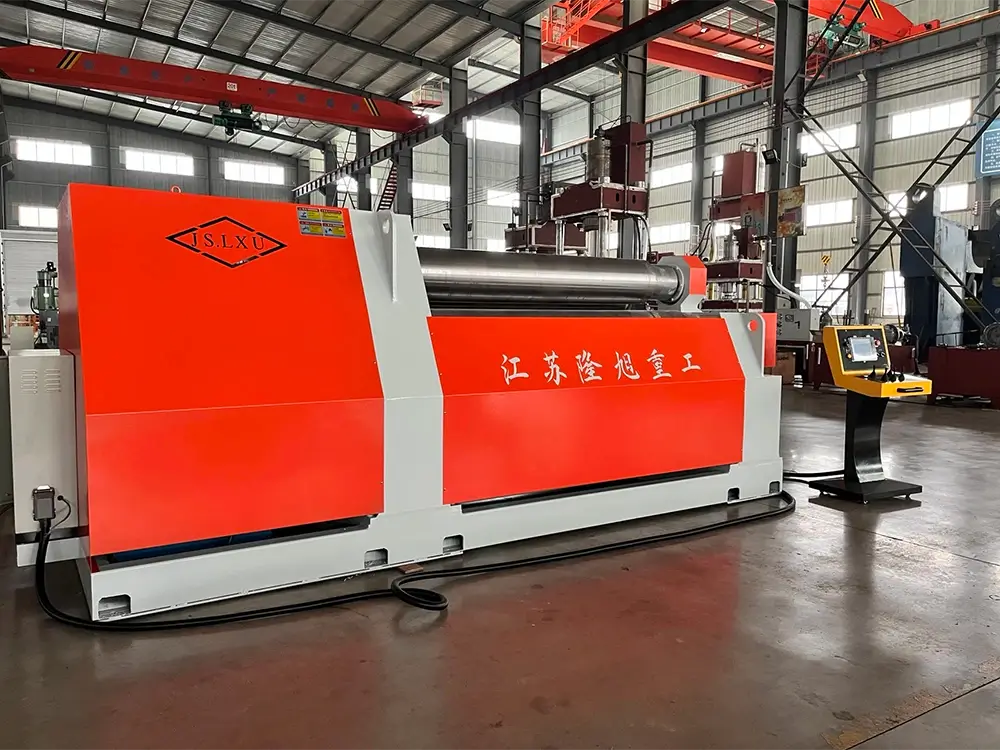

The machine is a Fully automatic CNC hydraulic four-roll plate bending machine, the upper roller is an initiative roller, the upper roller is fixed, the lower roller does up and down movement; the upper roller is a hydraulic initiative, while the lower roller and side rollers are driven by friction from plate and rollers.
Lower roller and side rollers are driven by hydraulic oil cylinder to do lifting movement. The upper roller’s center-bearing overturn and reset also driven by a hydraulic oil cylinder.
Rollers’ bearing and oil cylinder are installed on the left and right sides of the machine frame. Left and right machine frameworks are the main parts of the whole machine, which are totally steel welded, installed on the welded base, and all operations are finished on the console.

Product Features:
The Fully automatic CNC hydraulic four roll plate bending machine is very suitable for aluminum plate or stainless steel plate rolling and variable radius workpiece;
Rolling the whole cylinder or part of the cylinder with different radii can be easily realized;
lower roller and side roller are pushed by hydraulic piston for diagonal movement;

Welding the frame and eliminating the stress as a whole;
Quality certification of high strength induction hardening forging steel working roller;

overload protection;
centralized lubricating system;
Electronic balancing system;
Hydraulic motor and planetary reducer drive the working roller
Electrical power: Siemens or Schneider;

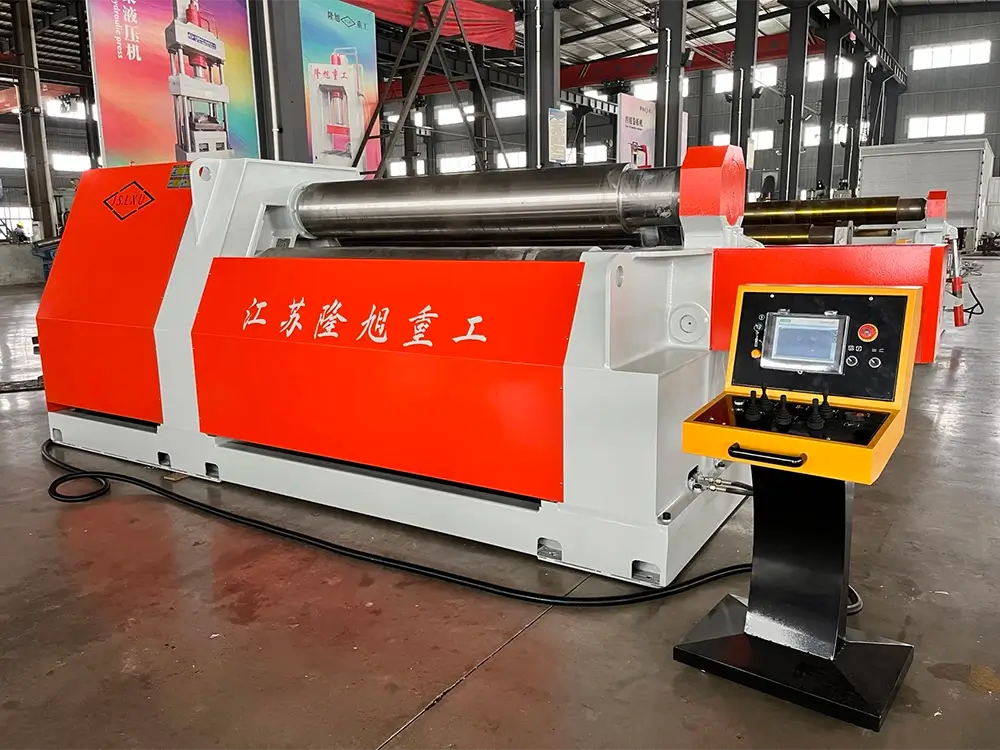

Easy to operate the movable operation table, with manual, semi-automatic, automatic variety of options;
CNC automatic control ;
With ISO9000 certification.
